    產品名稱 : Rotary Solenoid
    產品型號 : RG-RT-4925
    詢價
    產品介紹



    ▪ Plunger Weight:200g

    ▪ UNIT: mm Shown De-energized Right Hand Rotation

    ▪ COIL DATA

    Heat Sink: 190 x 190 x 3mm(alumimum) Return spring torque: 0.026~0.035 N.m

    Duty cycle(%)= X 100%Continuous
    (100%)    		Or less
    (75%)    		Or less
    (50%)    		Or less
    (25%)    		Or less
    (10%)
    MAX. "on" time in seconds 110 100 36 10
    Watts at 20°C 21 28 42 84 210
    Ampere-turns at 20°C 842 966 1190 1685 2660
    Gross starting torque at 20°(N.m) A:25° 0.22 0.3 0.47 0.84 1.39
    B:35° 0.104 0.15 0.24 0.47 0.84
    C:45° 0.081 0.127 0.195 0.39 0.725
    D:67.5° 0.058 0.081 0.127 0.23 0.45
    E:95° 0.022 0.035 0.046 0.098 0.185
    Type no.Resistance (20°C)
    ¡Ó10%    		No. turnsVolts DC
    RG-RT-49254.2AA 3.2 360 7.6 7.6 8.7 11 15
    RG-RT-49255.3AA 4.91 440 9.5 9.5 11 13 19
    RG-RT-40256.7AA 7.72 550 12 12 14 17 24
    RG-RT-49258.4AA 11.1 636 15 15 17 21 30
    RG-RT-402510AA 18.8 840 19 19 22 27 38
    RG-RT-492513AA 30.5 1088 24 24 28 34 48
    RG-RT-492517AA 44.9 1275 30 30 34 43 60
    RG-RT-402521AA 70.9 1596 38 38 43 54 76
    RG-RT-492526AA 109 1974 48 48 56 76 95
    RG-RT-492533AA 175 2496 60 60 69 85 120
    RG-RT-492542AA 270 3042 76 76 87 107 151
    RG-RT-492553AA 414 3600 95 95 109 134 190
    RG-RT-492567AA 610 4200 122 122 140 173 245
    RG-RT-402584AA 940 5200 151 151 174 213 301
    RG-RT-4925105AA 1560 6820 190 190 219 268 379

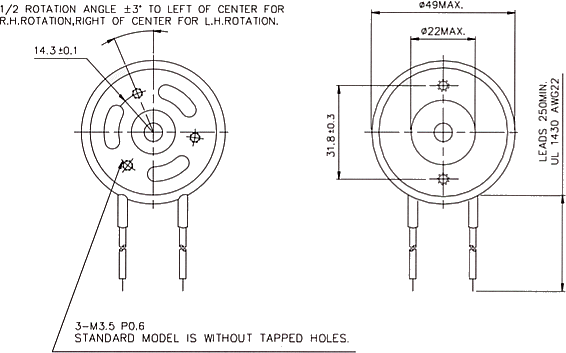

    : Rotation Direction and Angle

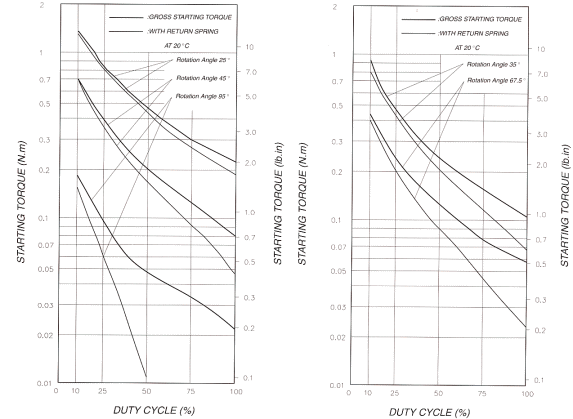

    ▪ DUTY CYCLE Vs STARTING TORQUE

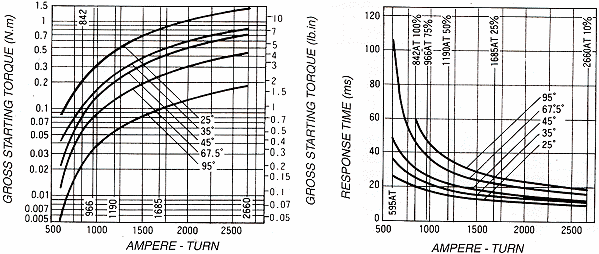

    ▪ E TURN Vs GROSS STARTING TORQUE           ▪ AMPERE-TURN Vs RESPONSE TIME
