Rotary Solenoid

▪ Plunger Weight:200g

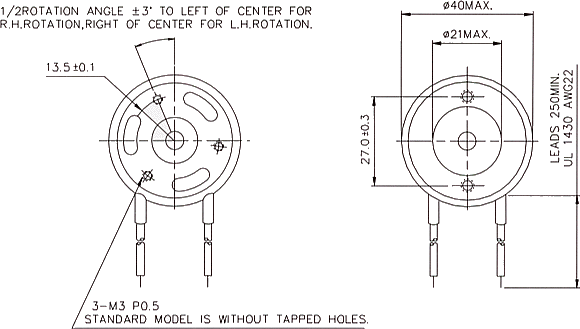

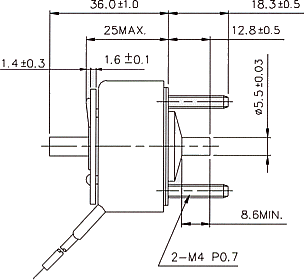

▪ UNIT: mm Shown De-energized Right Hand Rotation

▪ COIL DATA

Heat Sink: 160 x 160 x 3mm(alumimum) Return spring torque: 0.0165~0.024 N.m

Duty cycle(%)= X 100%			Continuous (100%)	Or less (75%)	Or less (50%)	Or less (25%)	Or less (10%)
MAX. "on" time in seconds				108	100	36	9
Watts at 20°C			12.5	16.5	25	50	125
Ampere-turns at 20°C			714	825	1000	1425	2250
Gross starting torque at 20°(N.m)		A:25°	0.104	0.138	0.195	0.355	0.52
		B:35°	0.069	0.092	0.127	0.23	0.355
		C:45°	0.035	0.058	0.092	0.16	0.276
		D:67.5°	0.022	0.035	0.046	0.092	0.185
		E:95°	0.012	0.022	0.035	0.058	0.115
Type no.	Resistance (20°C) ¡Ó10%	No. turns	Volts DC
RG-RT-40254.2AA	3.5	384	6.6	7.8	9.5	13	21
RG-RT-40255.3AA	5.67	486	8.4	9.7	12	17	27
RG-RT-40256.7AA	8.76	600	11	13	16	22	35
RG-RT-40258.4AA	13.8	748	13	15	18	26	42
RG-RT-402510AA	22.6	975	17	19	23	33	52
RG-RT-402513AA	34.8	1190	21	25	30	42	67
RG-RT-402517AA	56.7	1520	27	31	38	54	85
RG-RT-402521AA	88.3	1908	35	41	49	70	110
RG-RT-402526AA	138	2360	43	50	60	86	138
RG-RT-402533AA	216	2904	53	61	75	106	168
RG-RT-402542AA	351	3725	67	78	95	132	213
RG-RT-402553AA	480	4000	85	98	119	169	268
RG-RT-402567AA	720	4950	105	121	147	210	332
RG-RT-402584AA	1150	6200	132	153	185	264	-
RG-RT-4025105AA	1920	8350	166	191	232	332	-
RG-RT-4025133AA	3000	10000	210	250	300	-	-

: Rotation Direction and Angle

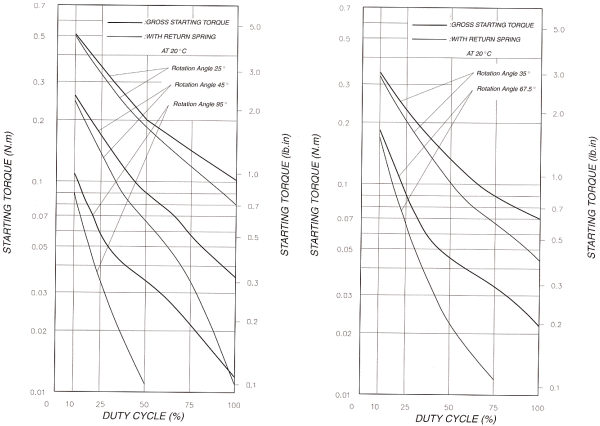

▪ DUTY CYCLE Vs STARTING TORQUE

▪ E TURN Vs GROSS STARTING TORQUE           ▪ AMPERE-TURN Vs RESPONSE TIME
