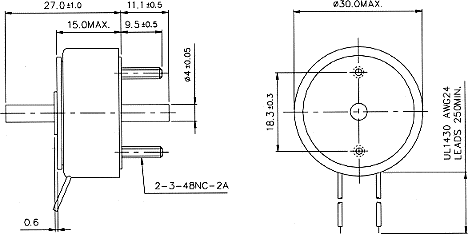

Push-Pull Solenoid
點小圖放大圖產品介紹
▪ Plunger Weight:16g
▪ Total Weight: 56g
▪ COIL DATA
Heat Sink: 90 x 90 x 3mm(alumimum)
Duty cycle(%)=  X 100% | Continuous (100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
|---|---|---|---|---|---|---|
| MAX. "on" time in seconds |  |
100 | 36 | 7 | ||
| Watts at 20°C | 7 | 14 | 28 | 70 | ||
| Ampere-turns at 20°C | 425 | 602 | 849 | 1350 | ||
| Type no. | Resistance (20°C) ¡Ó10% | No. turns | Volts DC | |||
| RG-T-3015SL06AA | 5.1 | 362 | 6 | 8.5 | 12 | 19 |
| RG-T-3015SL12AA | 20.6 | 730 | 12 | 17 | 24 | 38 |
| RG-T-3015SL24AA | 82.3 | 1458 | 24 | 34 | 48 | 76 |
| RG-T-3015SL48AA | 329 | 2913 | 48 | 68 | 96 | 152 |
