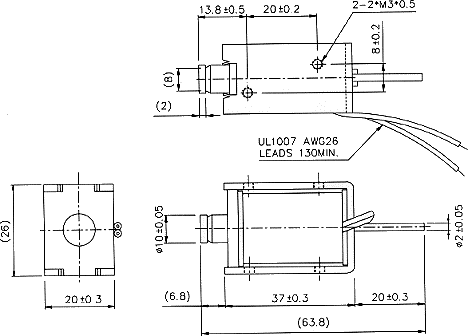

Open Frame Solenoid
點小圖放大圖產品介紹
▪ Plunger Weight:19g
▪ Total Weight: 96g
▪ COIL DATA
Duty cycle(%)=  X 100% | Continuous(100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
|---|---|---|---|---|---|---|
| MAX. "on" time in seconds |  |
100 | 36 | 7 | ||
| Watts at 20°C | 4 | 8 | 16 | 40 | ||

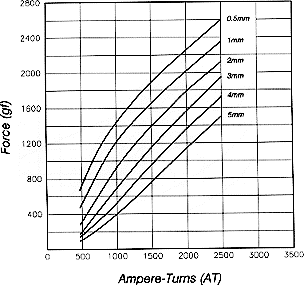

| Ampere-turns at 20°C | 600 | 850 | 1200 | 1900 | ||
| Type no. | Resistance (20°C)?0% | No. turns | Volts DC | |||
| RG-O-1037S06AA | 9 | 980 | 6 | 8.5 | 12 | 19 |
| RG-O-1037S12AA | 36 | 1700 | 12 | 17 | 24 | 38 |
| RG-O-1037S24AA | 144 | 3600 | 24 | 34 | 48 | 76 |
| RG-O-1037S48AA | 576 | 7300 | 48 | 68 | 96 | 152 |
