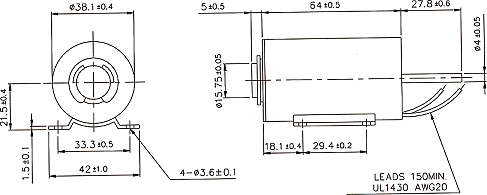

Tubular Solenoid RG-T-3864S

Enlargement

Heat Sink: 150 x 150 x 3mm(alumimum)

Duty cycle(%)= X 100%			Continuous (100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				420	100	25
Watts at 20^°C			17	34	68	170
Ampere-turns at 20^°C			1800	2546	3600	5692
Type no.	Resistance (20^°C) ¡Ó10%	No. turns	Volts DC
RG-T-3864S06AA	2.1	630	6	8.5	12	19
RG-T-3864S12AA	8.5	1275	12	17	24	38
RG-T-3864S24AA	34	2550	24	34	48	76
RG-T-3864S48AA	136	5535	48	68	96	152
