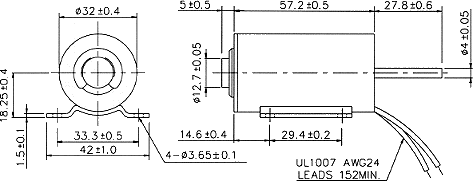

Tubular Solenoid RG-T-3257S

Enlargement

Heat Sink: 130 x 130 x 3mm(alumimum)

Duty cycle(%)= X 100%			Continuous (100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				390	60	18
Watts at 20^°C			13	26	52	130
Ampere-turns at 20^°C			1500	2121	3000	4743
Type no.	Resistance (20^°C) ¡Ó10%	No. turns	Volts DC
RG-T-3257S06AA	2.77	692	6	8.5	12	19
RG-T-3257S12AA	11.07	1385	12	17	24	38
RG-T-3257S24AA	44.3	2768	24	34	48	76
RG-T-3257S48AA	177.2	5535	48	68	96	152
