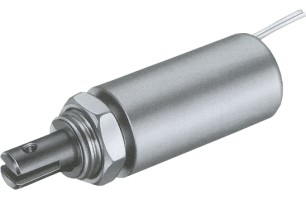

Tubular Solenoid RG-T-1939L

Enlargement

Heat Sink: 80 x 80 x 3mm(alumimum)

Duty cycle(%)= X 100%			Continuous (100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				230	25	6
Watts at 20^°C			7	14	28	70
Ampere-turns at 20^°C			855	1200	1700	2700
Type no.	Resistance (20^°C) ¡Ó10%	No. turns	Volts DC
RG-T-1939L06AA	5.14	733	6	8.5	12	19
RG-T-1939L12AA	20.6	1470	12	17	24	38
RG-T-1939L24AA	82.3	2930	24	34	48	76
RG-T-1939L48AA	329	5800	48	68	96	152
