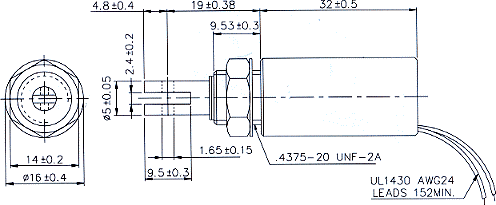

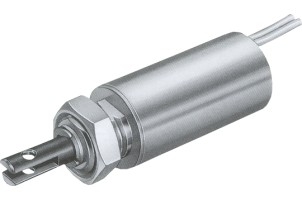

Tubular Solenoid RG-T-1632L

Enlargement

Heat Sink: 50 x 50 x 3mm(alumimum)

Duty cycle(%)= X 100%			Continuous (100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				230	25	6
Watts at 20^°C			5.5	11	22	55
Ampere-turns at 20^°C			738	1058	1476	2338
Type no.	Resistance (20^°C) ¡Ó10%	No. turns	Volts DC
RG-T-1632L06AA	6.5	800	6	8.5	12	19
RG-T-1632L12AA	26.2	1600	12	17	24	38
RG-T-1632L24AA	104.7	3200	24	34	48	76
RG-T-1632L48AA	419	6200	48	68	96	152
