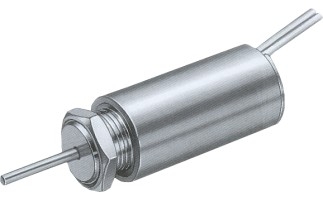

    Product Name : Tubular Solenoid
    Product No : RG-T-1325S
    Inquiry
    Product Introduction



    ▪ Plunger Weight:4.9g

    ▪ Total Weight: 23g

    ▪ COIL DATA

    Heat Sink: 50 x 50 x 3mm(alumimum)

    Duty cycle(%)= X 100%Continuous (100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 50 5 2
    Watts at 20°C 4 8 16 40
    Ampere-turns at 20°C 453 640 905 1440
    Type no.Resistance (20°C) ¡Ó10%No. turnsVolts DC
    RG-T-1325S06AA 9 680 6 8.5 12 19
    RG-T-1325S12AA 36 1359 12 17 24 38
    RG-T-1325S24AA 144 2700 24 34 48 76
    RG-T-1325S48AA 576 5400 48 68 96 152
