Tubular Solenoid
EnlargementProduct Introduction

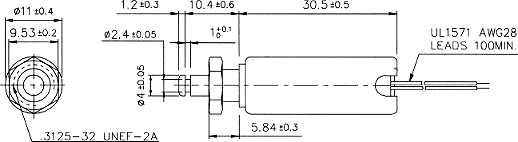

▪ Plunger Weight:3.2g
▪ Total Weight: 17g

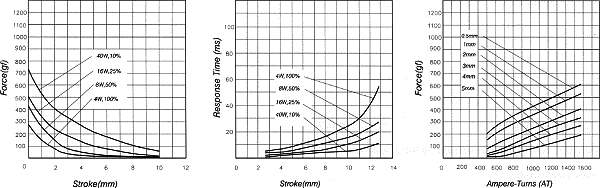

▪ COIL DATA
Heat Sink: 25 x 25 x 3mm(alumimum)
Duty cycle(%)=  X 100% | Continuous (100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
|---|---|---|---|---|---|---|
| MAX. "on" time in seconds |  |
50 | 5 | 2 | ||
| Watts at 20°C | 4 | 8 | 16 | 40 | ||
| Ampere-turns at 20°C | 497 | 704 | 994 | 1573 | ||
| Type no. | Resistance (20°C) ¡Ó10% | No. turns | Volts DC | |||
| RG-T-1130S06AA | 9 | 745 | 6 | 8.5 | 12 | 19 |
| RG-T-1130S12AA | 36 | 1492 | 12 | 17 | 24 | 38 |
| RG-T-1130S24AA | 144 | 2972 | 24 | 34 | 48 | 76 |
| RG-T-1130S48AA | 576 | 5850 | 48 | 68 | 96 | 152 |
