    Product Name : Rotary Solenoid
    Product No : RG-RT-7045
    Inquiry
    Product Introduction



    ▪ Plunger Weight:1013g

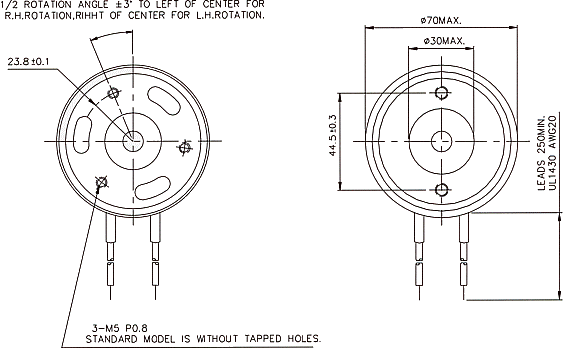

    ▪ UNIT: mm Shown De-energized Right Hand Rotation

    ▪ COIL DATA

    Heat Sink: 390 x 390 x 3mm(alumimum) Return spring torque: 0.075~0.105 N.m

    Duty cycle(%)= X 100%Continuous
    (100%)    		Or less
    (75%)    		Or less
    (50%)    		Or less
    (25%)    		Or less
    (10%)
    MAX. "on" time in seconds 112 80 37 16
    Watts at 20°C 35 46.5 70 140 350
    Ampere-turns at 20°C 1570 1800 2230 3150 5000
    Gross starting torque at 20°(N.m) A:25° 1.27 2.12 2.74 3.8 4.9
    B:35° 0.69 0.99 1.38 2.53 4.37
    C:45° 0.58 0.78 1.0 1.88 3.42
    D:67.5° 0.288 0.355 0.59 1.12 2.01
    E:95° 0.178 0.3 0.4 0.735 1.21
    Type no.Resistance (20°C)
    ¡Ó10%    		No. turnsVolts DC
    RG-RT-70458AA 1.88 368 8 9.3 11 16 26
    RG-RT-704510AA 3.01 448 10 11 14 20 32
    RG-RT-704513AA 4.82 580 13 15 18 26 41
    RG-RT-704516AA 8.1 780 16 19 23 33 52
    RG-RT-704520AA 12.3 949 20 23 29 41 65
    RG-RT-704526AA 19 1148 26 30 37 52 83
    RG-RT-704533AA 30.8 1472 33 38 46 66 105
    RG-RT-704541AA 48.8 1854 41 47 59 83 132
    RG-RT-704552AA 81.1 2436 52 60 75 105 166
    RG-RT-704564AA 121 2944 64 74 92 130 206
    RG-RT-704582AA 190 3650 82 94 118 166 264
    RG-RT-7045104AA 275 4175 104 119 147 209 331
    RG-RT-7045119AA 440 5792 119 137 170 240 -
    RG-RT-7045165AA 735 7000 165 191 235 331 -
    RG-RT-7045204AA 995 7600 204 239 288 - -

    : Rotation Direction and Angle

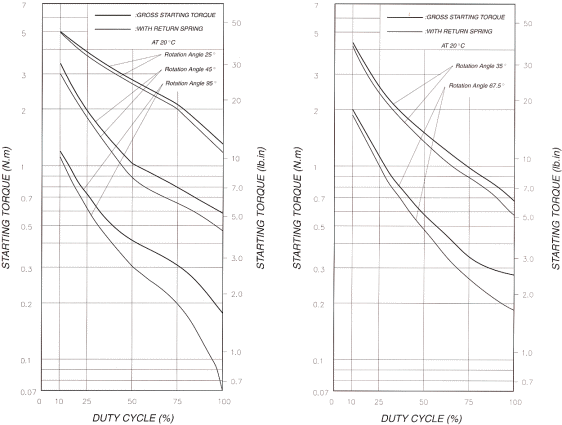

    ▪ DUTY CYCLE Vs STARTING TORQUE

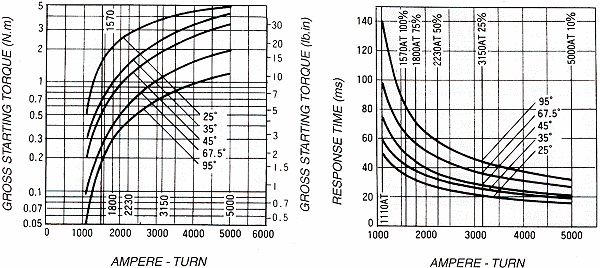

    ▪ E TURN Vs GROSS STARTING TORQUE           ▪ AMPERE-TURN Vs RESPONSE TIME
