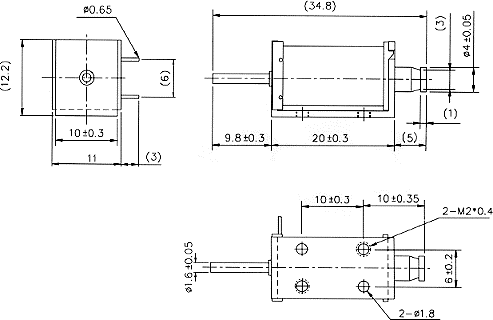

    Product Name : Open Frame Solenoid
    Product No : RG-O-0420S
    Inquiry
    Product Introduction



    ▪ Plunger Weight: 2g

    ▪ Total Weight: 8g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 50 18 2
    Watts at 20°C 1.2 2.4 4.8 12.0
    Ampere-turns at 20°C 219 309 438 692
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0420S06AA 30 1095 6 8.5 12 19
    RG-O-0420S12AA 120 2190 12 17 24 38
    RG-O-0420S24AA 480 4380 24 34 48 76
    RG-O-0420S48AA 1920 8760 48 68 96 152
