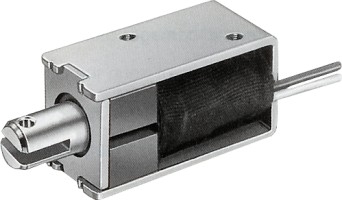

    Product Name : Permanent Magnet Solenoid
    Product No : RG-K-0730L
    Inquiry
    Product Introduction



    ▪ Plunger Weight:8g

    ▪ Total Weight: 34g

    ▪ COIL DATA

    Release Voltage: Rated Voltage of 12 Watts ¡Ó 10%(Reference)

    Duty cycle(%)= X 100%Or less(63%)Or less(30%)Or less(15%)Or less(10%)
    MAX. "on" time in seconds 60 30 10 8
    Watts at 20°C 4.8 10 20 30
    Ampere-turns at 20°C 350 510 710 880
    Type no.Resistance (20°C) ¡Ó10%No. turnsVolts DC
    RG-K-0730L4.8AA 7.5 490 6 8.7 12.2 15
    RG-K-0730L9.5AA 30 916 12 17.4 24.5 30
    RG-K-0730L19AA 120 1700 24 34.8 49 60
    RG-K-0730L38AA 480 3320 48 69.6 98 120
