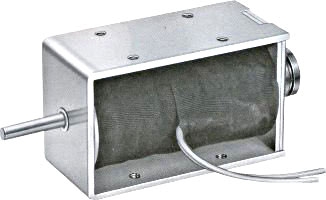

Open Frame Solenoid RG-O-1578S

Enlargement

Duty cycle(%)= X 100%			Continuous(100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				160	80	32
Watts at 20^°C			13	16	52	130
Ampere-turns at 20^°C			2030	2870	4060	6430
Type no.	Resistance (20^°C)?0%	No. turns	Volts DC
RG-O-1578S06AA	2.8	940	6	8.5	12	19
RG-O-1578S12AA	11.1	1930	12	17	24	38
RG-O-1578S24AA	44.3	3820	24	34	48	76
RG-O-1578S48AA	177	7400	48	68	96	152
