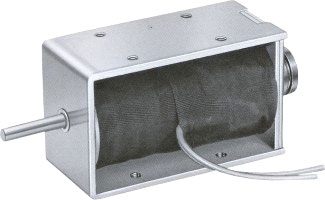

Open Frame Solenoid

Open Frame Solenoid
    Enlargement
    Product Name : Open Frame Solenoid
    Product No : RG-O-1564S
    Inquiry
    Product Introduction



    ▪ Plunger Weight:71g

    ▪ Total Weight: 363g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 140 50 9
    Watts at 20°C 8 16 32 80

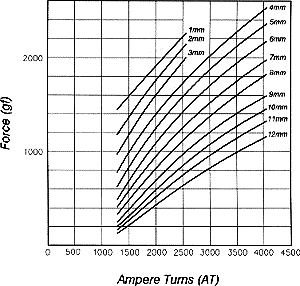

    Ampere-turns at 20°C 1240 1750 2480 3958
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-1564L06AA 4.5 950 6 8.5 12 19
    RG-O-1564L12AA 18 1900 12 17 24 38
    RG-O-1564L24AA 72 3750 24 34 48 76
    RG-O-1564L48AA 288 7440 48 68 96 152
