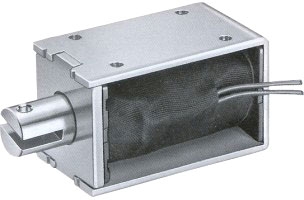

Open Frame Solenoid

Open Frame Solenoid
    Enlargement
    Product Name : Open Frame Solenoid
    Product No : RG-O-1250L
    Inquiry
    Product Introduction



    ▪ Plunger Weight:41g

    ▪ Total Weight: 208g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 140 50 9
    Watts at 20°C 5.5 11 22 55

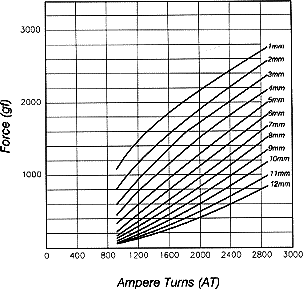

    Ampere-turns at 20°C 854 1210 1708 2704
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-1250L06AA 6.5 925 6 8.5 12 19
    RG-O-1250L12AA 26.2 1865 12 17 24 38
    RG-O-1250L24AA 104.5 3736 24 34 48 76
    RG-O-1250L48AA 419 7455 48 68 96 152
