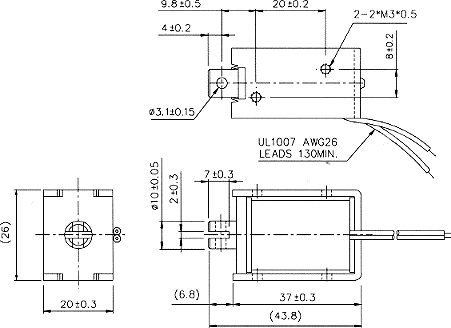

    Product Name : Open Frame Solenoid
    Product No : RG-O-1037L
    Inquiry
    Product Introduction



    ▪ Plunger Weight:19g

    ▪ Total Weight: 96g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 100 36 7
    Watts at 20°C 4 8 16 40

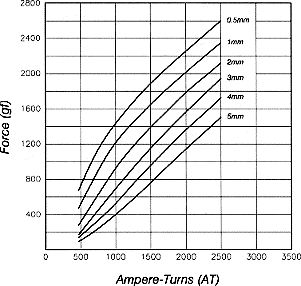

    Ampere-turns at 20°C 600 850 1200 1900
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-1037L06AA 9 980 6 8.5 12 19
    RG-O-1037L12AA 36 1700 12 17 24 38
    RG-O-1037L24AA 144 3600 24 34 48 76
    RG-O-1037L48AA 576 7300 48 68 96 152
