    Product Name : Open Frame Solenoid
    Product No : RG-O-0837S
    Inquiry
    Product Introduction



    ▪ Plunger Weight:12g

    ▪ Total Weight: 96g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 100 36 7
    Watts at 20°C 4 8 16 40

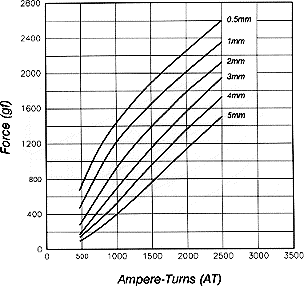

    Ampere-turns at 20°C 666 941 1332 2106
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0837S06AA 9 1000 6 8.5 12 19
    RG-O-0837S12AA 36 2000 12 17 24 38
    RG-O-0837S24AA 144 4000 24 34 48 76
    RG-O-0837S48AA 576 7540 48 68 96 152
