    Product Name : Open Frame Solenoid
    Product No : RG-O-0826S
    Inquiry
    Product Introduction



    ▪ Plunger Weight: 9g

    ▪ Total Weight: 66g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 100 36 7
    Watts at 20°C 2.8 5.6 11.2 28

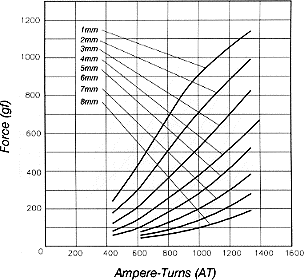

    Ampere-turns at 20°C 436 617 872 1380
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0826S06AA 12.9 937 6 8.5 12 19
    RG-O-0826S12AA 51.4 1868 12 17 24 38
    RG-O-0826S24AA 206 3742 24 34 48 76
    RG-O-0826S48AA 823 7476 48 68 96 152
