    Product Name : Open Frame Solenoid
    Product No : RG-O-0730S
    Inquiry
    Product Introduction



    ▪ Plunger Weight: 8g

    ▪ Total Weight: 33g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 55 19 3
    Watts at 20°C 2.2 4.4 8.8 22

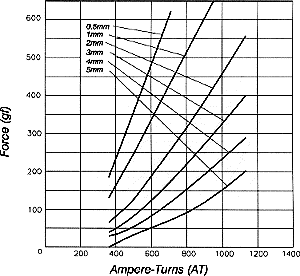

    Ampere-turns at 20°C 358 507 716 1134
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0730S06AA 16.4 979 6 8.5 12 19
    RG-O-0730S12AA 66.5 1954 12 17 24 38
    RG-O-0730S24AA 262 3908 34 48 48 76
    RG-O-0730S48AA 1047 7809 48 68 96 152
