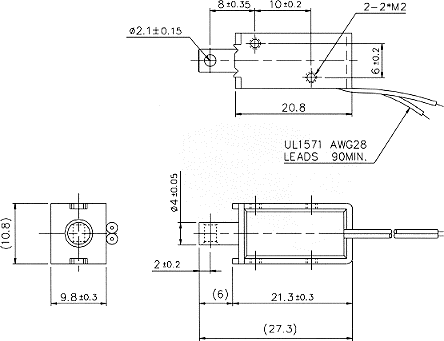

    Product Name : Open Frame Solenoid
    Product No : RG-O-0421L
    Inquiry
    Product Introduction



    ▪ Plunger Weight: 2g

    ▪ Total Weight: 10g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 50 18 2
    Watts at 20°C 1.1 2.2 4.4 11
    Ampere-turns at 20°C 198 281 396 627
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0421L03AA 8.18 540 3 4.2 6 9.5
    RG-O-0421L06AA 32.7 1079 6 8.5 12 19
    RG-O-0421L12AA 131 2162 12 17 24 38
    RG-O-0421L24AA 524 4323 24 34 48 76
