    Product Name : Rotary Solenoid
    Product No : RG-RT-5935
    Inquiry
    Product Introduction



    COIL DATA

    Heat Sink:90x90x3mm(alumimum) Return spring torque:0.0055~0.009N.m

    Duty cycle(%)= X 100%Continuous
    (100%)
    Or less
    (75%)
    Or less
    (50%)
    Or less
    (25%)
    Or less
    (10%)
    MAX. "on" time in seconds 115 87 36 13
    Watts at 20°C 29 38.5 58 116 290
    Ampere-turns at 20°C 1240 1440 1760 2490 3920
    Gross starting torque at 20°(N.m) A:25¢X 0.53 0.26 1.02 1.8 3.2
    B:35¢X 0.39 0.53 0.75 1.38 2.14
    C:45¢X 0.276 0.276 0.4 0.75 1.26
    D:67.5¢X 0.24 0.24 0.355 0.64 1.0
    E:95¢X 0.138 0.138 0.195 0.38 0.6
    Type no.Resistance (20°C)
    ¡Ó10%
    No. turnsVolts DC
    SMTR-59358.3AA 2.23 336 8.3 9.6 12 16 26
    SMTR-593510AA 3.6 432 10 12 15 21 33
    RG-RT-704513AA 5.24 500 13 15 18 26 41
    SMTR-593516AA 9.51 708 16 19 23 33 52
    SMTR-593521AA 14.4 858 21 24 29 41 66
    SMTR-593526AA 23.7 1110 26 30 37 52 83
    SMTR-593533AA 38.2 1411 33 38 47 66 104
    RG-RT-704541AA 54.7 1638 41 48 59 83 131
    SMTR-593552AA 93.7 2184 52 61 74 104 165
    SMTR-593566AA 143 2645 66 76 93 131 207
    SMTR-593583AA 223 3328 83 96 117 165 261
    RG-RT-7045104AA 338 4004 104 121 147 208 329
    SMTR-5935131AA 550 5088 131 152 185 262 -
    RG-RT-7045162AA 790 5860 165 192 233 330 -
    SMTR-5935208AA 1233 7260 208 242 294 - -

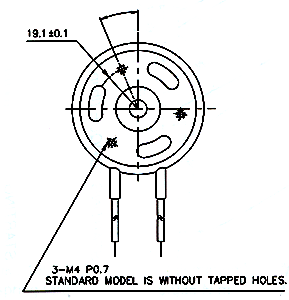

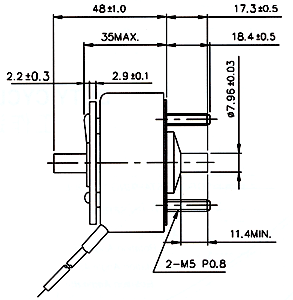

    : Rotation Direction and Angle

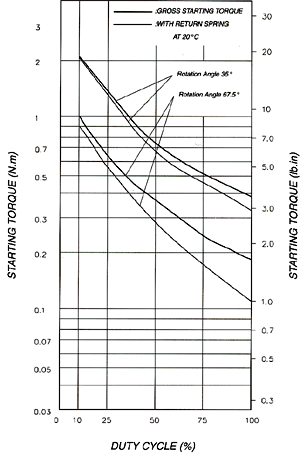

    DUTY CYCLE Vs STARTING TORQUE

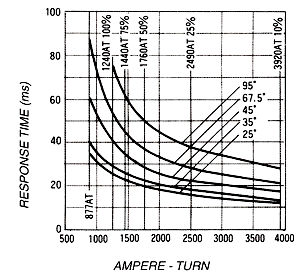

    GROSS STARTING           AMPERE TURN Vs RESPONSE TIME
