Open Frame Solenoid
    Enlargement

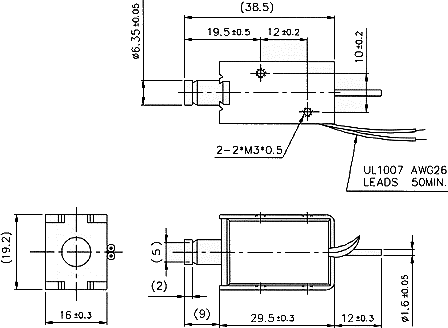

    Product Name : Open Frame Solenoid
    Product No : RG-O-0630S
    Inquiry
    Product Introduction



    Plunger Weight: 5g

    Total Weight: 42g

    COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 55 19 3
    Watts at 20°C 2.4 4.8 9.6 24

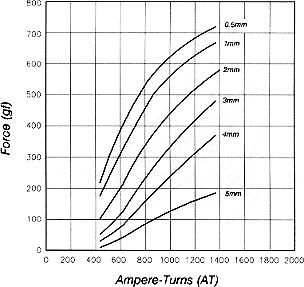

    Ampere-turns at 20°C 432 615 864 1368
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0630S06AA 15 1080 6 8.5 12 19
    RG-O-0630S12AA 60 2160 12 17 24 38
    RG-O-0630S24AA 240 4320 24 34 48 76
    RG-O-0630S48AA 960 8640 48 68 96 152
