Open Frame Solenoid
    Enlargement

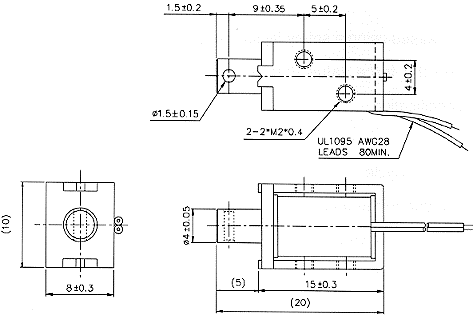

    Product Name : Open Frame Solenoid
    Product No : RG-O-0415L
    Inquiry
    Product Introduction



    Plunger Weight: 0.6g

    Total Weight: 5.4g

    COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 50 18 3
    Watts at 20°C 0.8 1.6 3.2 8.0
    Ampere-turns at 20°C 130 185 260 415
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-0415L03AA 11.2 489 3 4.2 6 9.5
    RG-O-0415L06AA 45 975 6 8.5 12 19
    RG-O-0415L12AA 180 1950 12 17 24 38
    RG-O-0415L24AA 720 3900 24 34 48 76
